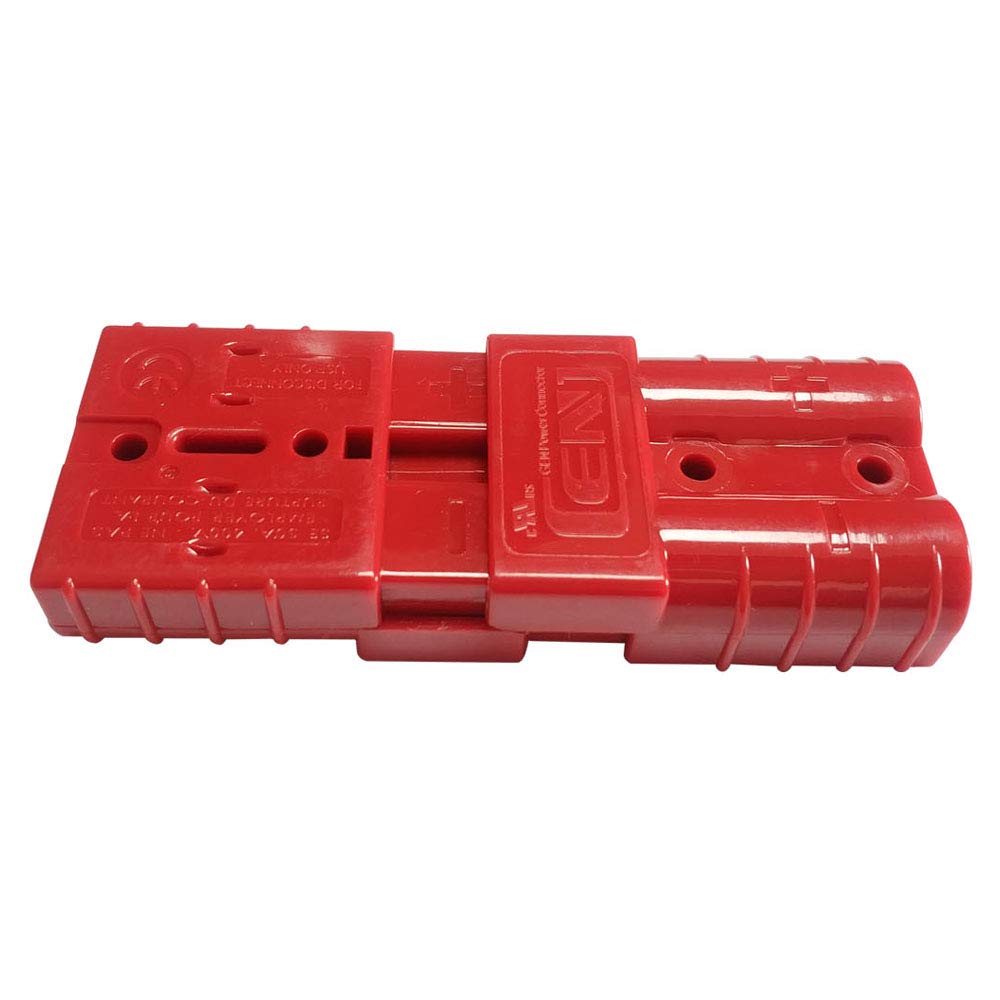

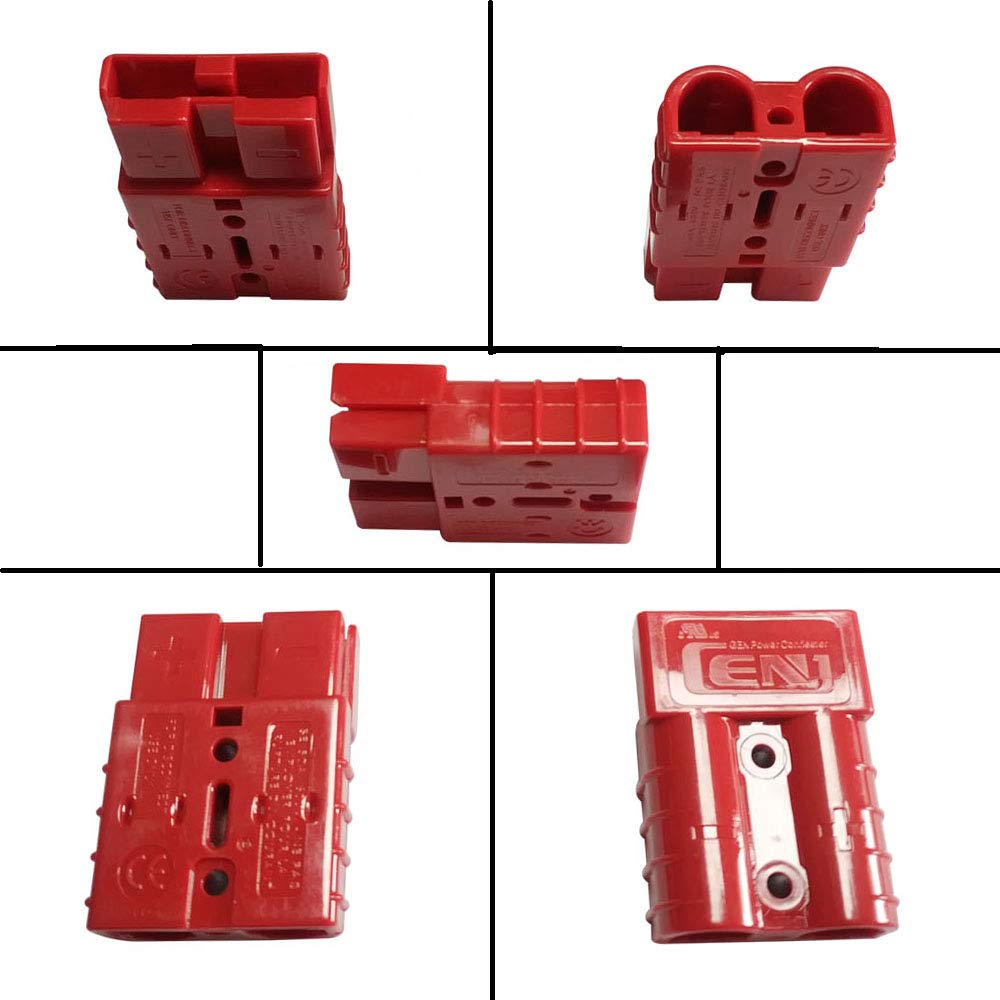

Color red.Housing Material Polycarbonate (PC).Contact material Pure copper silver plating.Rated Current 50A.Rated Voltage 600V.VoltageFor 12v or 24v Use.
Vibration Resistance Excellent.Impact Resistance High.Average contact resistance 0.05MΩ.Voltage proof 2200V (DC).Insulation resistance 500MΩ.
No load (Contact/Disconnect Cycles) To 10,000.Under load (Hot Plug 250cycless@120V) 50A.
Flammability Rating of Housing Material UL94 V- 0.Operating temperature range -20°to 105°.

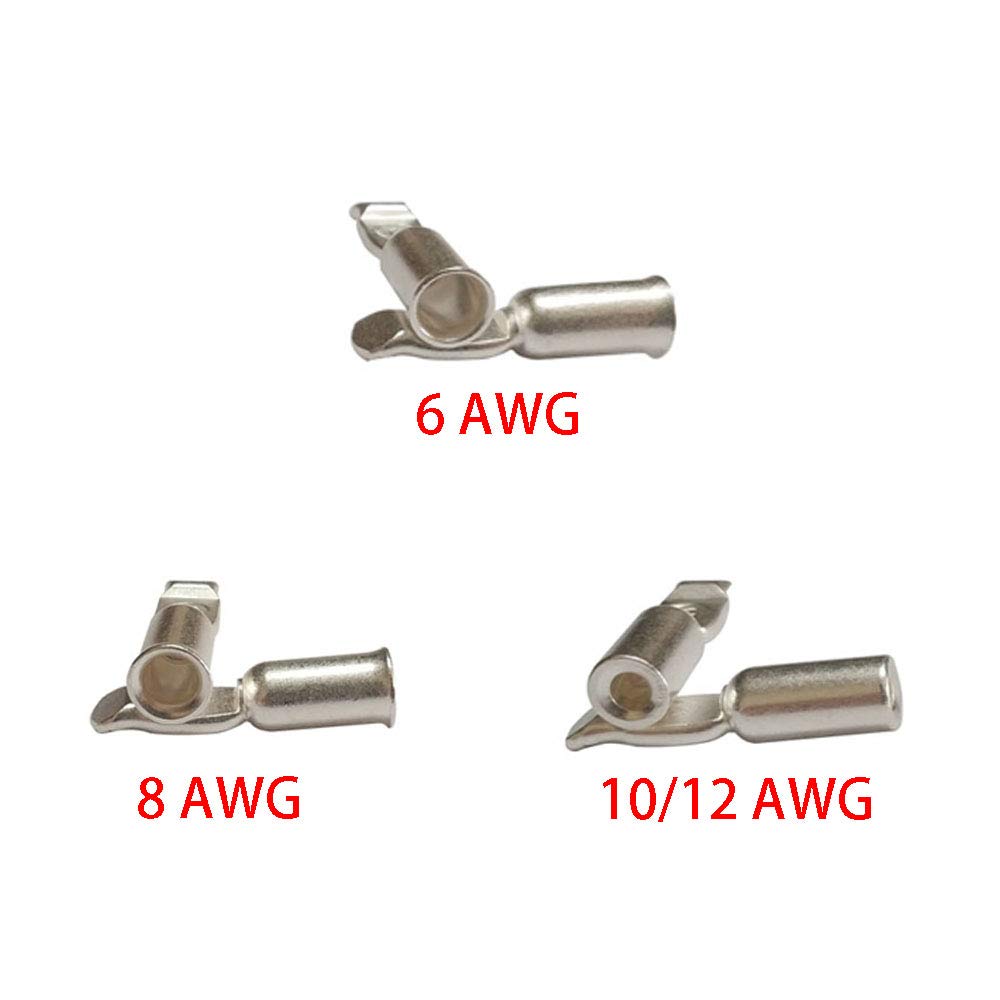

The Plugs is Impact Resistant Polycarbonate and Connectors are Silver plated Solid Copper Terminals.Provide simplified assembly and minimize the number of components.Silver plated copper contacts inside housings that strongly force the contacts together.
