96V 65A MPPT Solar Charge Controller - 48V 60V 72V Auto Wake Up for Dead Batteries - 6600W 180V PV Input - Compatible with Sealed, Gel, AGM, Flooded & Lithium Batteries - Perfect for Off-Grid Solar Systems, RV, Marine & Home Backup Power
$105.6
$192
Safe 45%
96V 65A MPPT Solar Charge Controller - 48V 60V 72V Auto Wake Up for Dead Batteries - 6600W 180V PV Input - Compatible with Sealed, Gel, AGM, Flooded & Lithium Batteries - Perfect for Off-Grid Solar Systems, RV, Marine & Home Backup Power
$105.6
$192
45% Off
Delivery & Return: Free shipping on all orders over $50
Estimated Delivery: 10-15 days international
25 people viewing this product right now!
SKU: 39077374
Guranteed safe checkout
Description

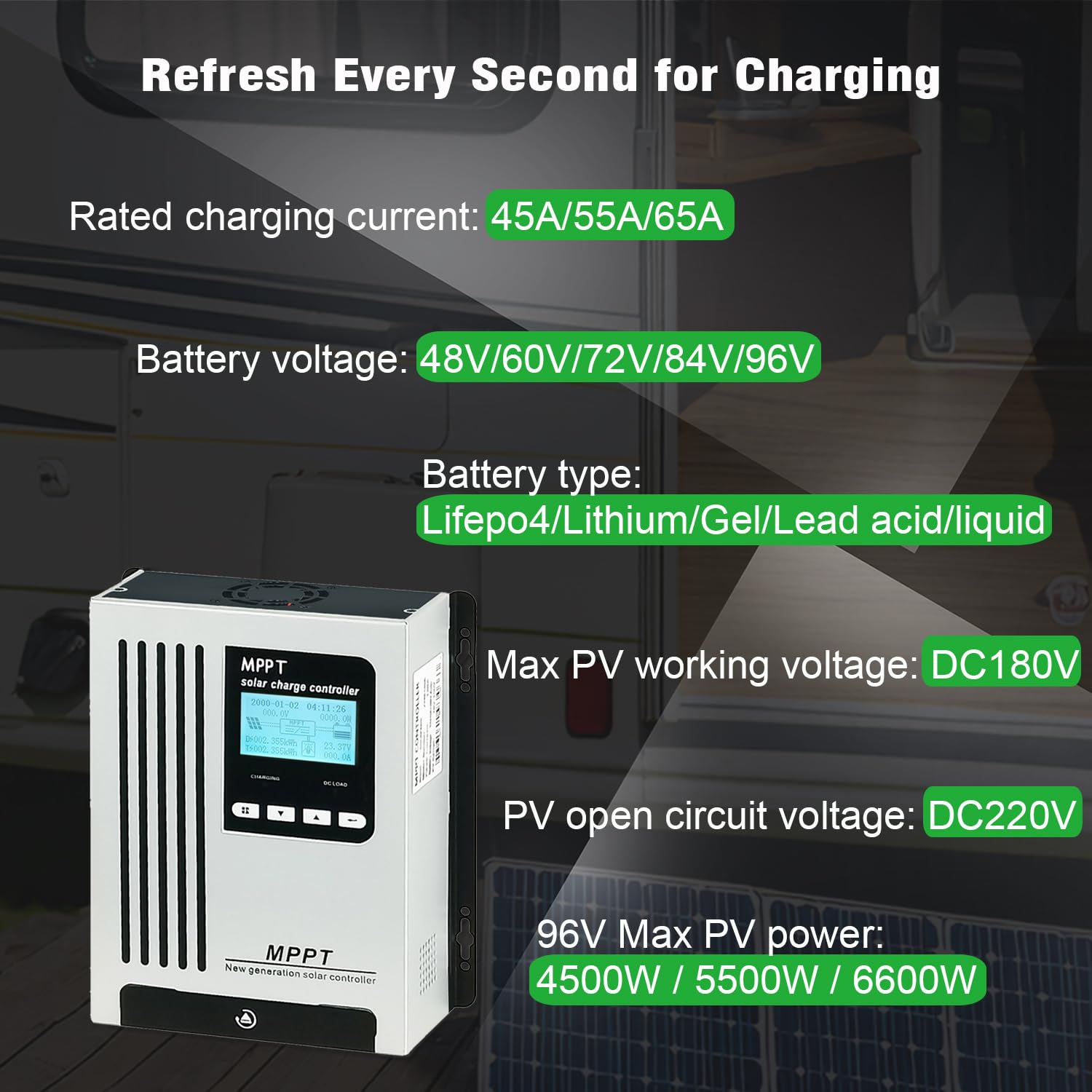

Tracking per second MPPT solar charge controller 65A MPPT solar charger with dead battery reactivation PV input voltage range 48V battery (DC65V -DC180V); 60V battery (DC75V - DC180V); 72V battery (DC90V - DC180V); 96V battery (DC130V - DC180V)The input voltage of the PV must be greater than the battery voltage.Max PV power input: 48V (3560W)； 60V (4450W)； 72V (5340W)； 96V (6600W) / Voltage range identified by the system： 48V System（DC36V~DC60V）；60V System（DC45V~DC75V）；72V System（DC54V~90V) ；96V System（DC72~120V) The video showcases the product in use.The video guides you through product setup.The video compares multiple products.The video shows the product being unpacked. 45A-65A MPPT solar charger battery reactivation 48V-96V system voltage supports Lithium, Gel, Liquid, Lead acid battery • Auto wake up dead battery and Easy installation • All-round protection and USB to RS485 converter for PC software • Certification: CE, PSE and METI Registration • The conversion efficient rate up to 99% and The max solar panel input working voltage up to DC180V, open circuit voltage up to DC220V. This SF9665A supports 48V / 60V / 72V / 84V / 96V battery votlage, 60V / 72V / 84V need manual setting, it can't support 12V / 24V /36V. Protections: over charge, over discharge,reverse connection, over voltage, short circuit, reverse current, high temperature, low or over voltage input recovery etc. Technical Parameter New function: battery re-activation, 48V 96V AUTO / 60V 72V 84V manual setMPPT Charging mode: MPPT, Equalizing charging (lead acid / GEL/ Liquid), float chargingBatteries support: lead acid, sealed, Gel, AGM, lithium battery etc.Software start-up time: ≤ 10s, noise: ≤50dB, Temperature coefficient: ±0.02% / ℃Automatic temperature compensation: 14.2V - (highest temperature -25℃) * 0.3%Temperature protection: 85℃, altitude: 0~3000mSmell: No harmful smell, atmospheric pressure: 70~106kPa, Humidity: 0 ~90% RH (not condensation)Environment temperature: -20℃ ~ +40℃, Storage temperature: -40℃ ~ +70℃Protection: over charge, over discharge,reverse connection, over voltage, short circuit, high temperature etc.LCD display: PV input voltage, battery type, battery voltage, charge current, daily generation, total generation, language and date, charge status, fault record query, and power curve etc. Previous page It is battery re-activation. It can auto wake up the dead batteries through the controller when the sun comes out. You don't need to use the additional tools to activate the battery while it is dead. How to connect the MPPT solar controller? Please connect the battery with controller first, then connect the solar panels with controller. About disconnection, please disconnect solar panel first, then disconnect the battery. Next page Please do not connect the inverter / battery / generator... directly with the DC load of controller. Household appliances with motors need to take into account that their instant start power is 3-5 times. The DC load has PV control, time control and auto control. Complete production process 100 % fully load burn-in testing MPPT controllers and inverters have many intelligent protection functions and new working modes. These products are 100 % fully load burn-in testing before shipping to make sure the quality.
More
Shipping & Returns
For all orders exceeding a value of 100USD shipping is offered for free.
Returns will be accepted for up to 10 days of Customer’s receipt or tracking number on unworn items. You, as a Customer, are obliged to inform us via email before you return the item.
Otherwise, standard shipping charges apply. Check out our delivery Terms & Conditions for more details.
Features

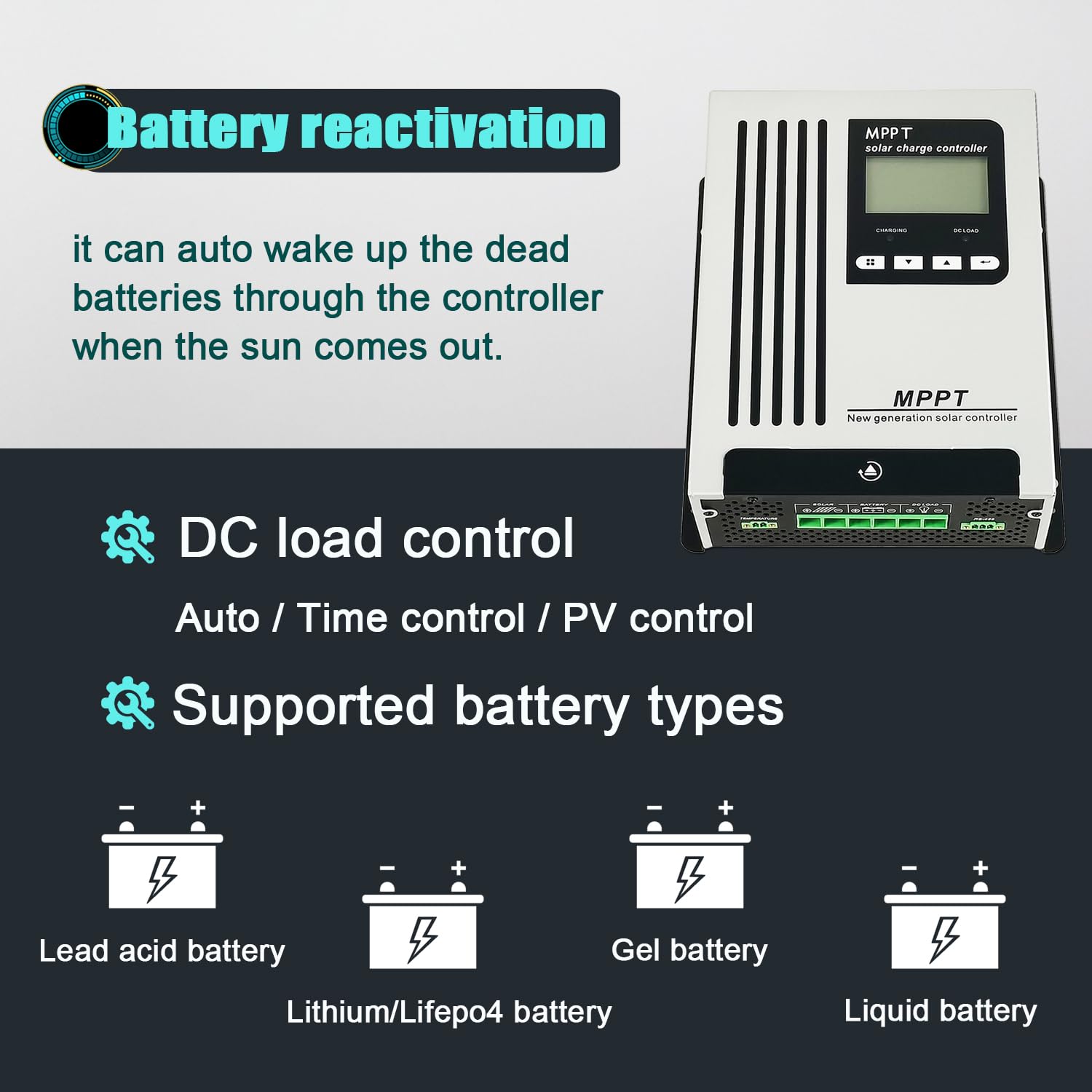

New function updated battery re-activation. It can auto wake up the dead batteries through the controller when the sun comes out.

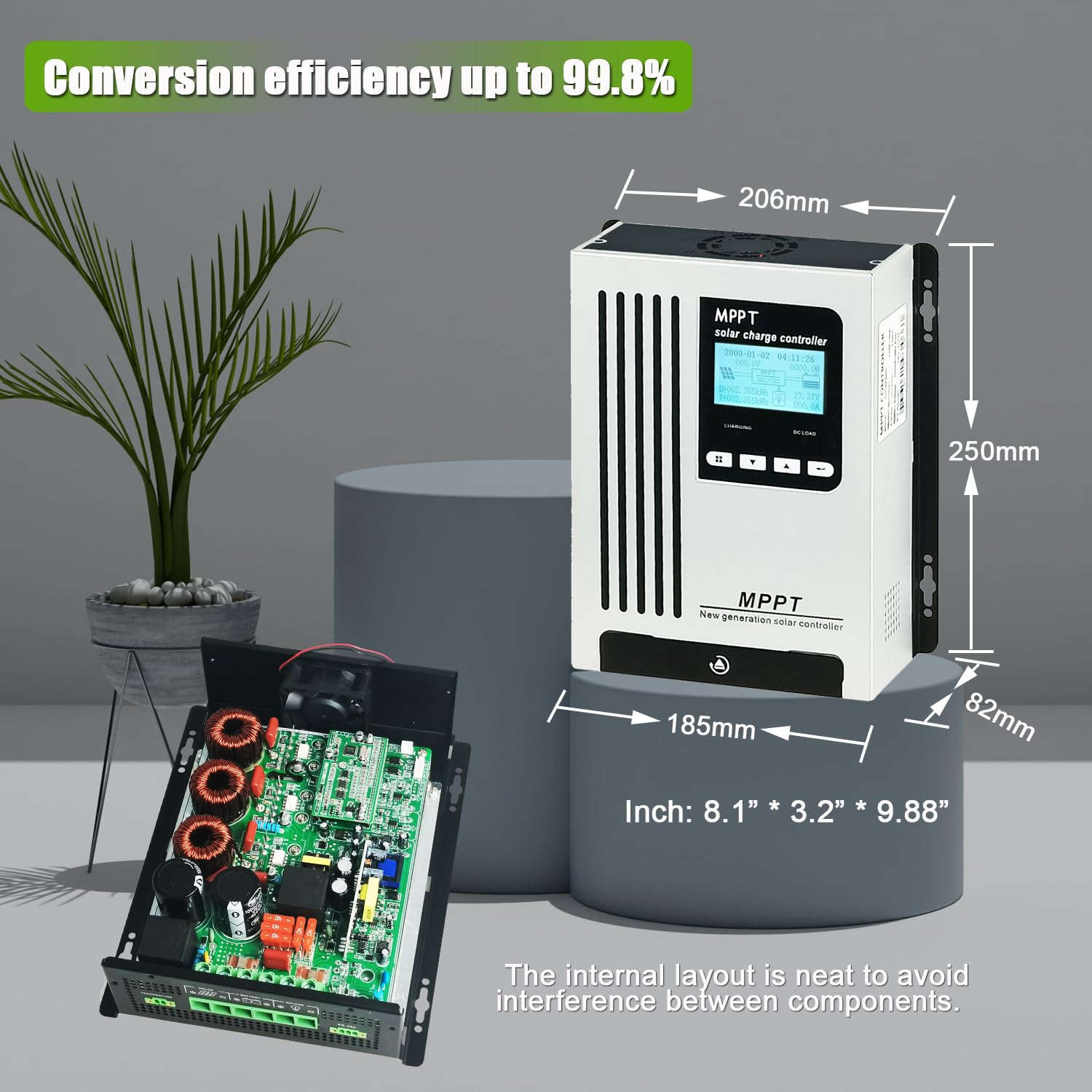

Certification CE, PSE, SGS and METI Registration; Iron shell and aluminum cooling plate can help the dissipate heat effectively; The internal layout is neat to avoid interference between components.
Batteries support lead acid, sealed, Gel, AGM, lithium battery etc; 48V 96V Auto / 60V 72V 84V manual set. Max solar panel input working voltage range DC180V, MAX input PV panel power 6600W.
It can keep the maximum power charge, the conversion efficient rate up to 98.1%, power consumption lower than 0.7W; PV modules utilization rate ≤99.9%; Static power is ≤2W; Noise is ≤50dB.
The charging models are MPPT, equalizing charge ( (lead acid / GEL/ Liquid)), floating charge; Protection over charge, over discharge,reverse connection, over voltage, short circuit, high temperature, low or over voltage input recovery etc.
Easy installation; LCD display PV input voltage, battery type, battery voltage, charge current, daily generation, total generation, language and date, charge status, fault record query, and power curve etc.
Wide Application This solar charge controller is suitable for various applications, including off-grid solar systems, RVs, boats, solar ebike, home backup power systems, and more.
Reviews
*****
Verified Buyer
5
This is 2nd unit at my home.(my 1st unit has been working over 16 months, and 2nd unit has got recently)(I have wait over one year to write this review)I have choose high voltage version because my input solar power is 2.45kW@130~150Voc/90~120Vmp.The 150~160V input chargers are not suitable for me because the limit of input voltage when cold weather, I have experienced around 146~148Voc in winter season,There are thermal sensor, wall mount screw, RS485 dongle, manual and charger are included in the package. there is no software kit, user need to contact with the seller to get a monitor/control software.I am using my own software to monitor the status of charging in my system.I have opened an checked some parts, there are three charging control channel, each channel can handle +20A, and it is enough to handle, I have been using the other charger, it has been supported over 55A for 16 months already. the power module has been verified over long time.It is real >55A charger, as it has been specified as 65A. Some cheap charger can not handle their maximum charging current well, mostly 50~60% of their power, but, this charger can handle over 80% of their specification over long time.It has 200V input capacitor to support 180V, and there are some marginal value as 20V.My Voc level is around 144~148Voc in winter, and 130~138Voc in summerThe terminal block is enough size to support AWG-6 wires for 50A, and AWG-8 wires for 40A.I have installed AWG-10 for PV input (20~30A), and AWG-8 for Charger output (40~50A). The temperature of wire is rising over 40C under maximum load current, but, there is no issue yet.Information display is very simple to understand the status of operation,There are some detail production graph also.One of best in this charger(seller), they have great customer support system,On time response about any request/question, and, it is coming with 2 YEARS Warranty.When I check the other seller's charger, they just provide 1 Year or No warranty.This is one of reason why I recommend this charger, because the most failure of charger is happening 6~18 months term, because it is experiencing the high voltage with cold weather, and high current with hot weather.BUT, there are some very minor issues(1) hope the monitoring software should be uploaded somewhere(2) passkey for setting is not specified on the manual, (up arrow x 3, down arrow x 3, enter)AND, wish some improvement points as(1) how about lower speed dual cooling fan to reduce the noiseI have tried to track the MPPT and Charger Efficiency, but, there is no input current measurements on the display or software. so, I just checked using my own multi-meter.The MPPT efficiency is higher than 98% at the lower sun intensity, and 99% at the high sun intensity.and, the charger converting efficiency (110V to 53V) is over 96%. and, it is better than typical similar low cost chargers. and, meet the specification.
